Wet & Dry Lamination Machine

GravoLam Wet

Wet Lamination Machine with speeds upto 200 mpm

Schedule A Call Back
25+

GravoLam Wet & Dry

Trusted by Established Companies


Wet Lamination machine is used for lamination of 2 substrates using a solvent or water based adhesive. Lamination happens right after the primary substrate (non-porous) picks up adhesive. These machines are used to laminate a porous substrate to non-porous substrates, for example laminating paper with foil / cpp / polyester / BOPP etc…

These wet lamination machines have a small drying tunnel before rewinding, making them versatile, accounting for relative humidity during rainy seasons

Ergonomic design of the machine with advanced electronic controls make this machine a suitable solution for all types of wet lamination jobs.

Technical Specifications

Web width

Up to 1300 mm

Speed

Up to 200 m/min

Material

Paper and Polyester, BOPP, LDPE, Foil, CPP

Unwinder “A” Core

76mm / 152mm

Unwinder “B” Core

76mm / 152mm

Rewinder Core

76mm / 152mm

Drives

All A.C. Digital Drives

Area Required

6000x2500x4300

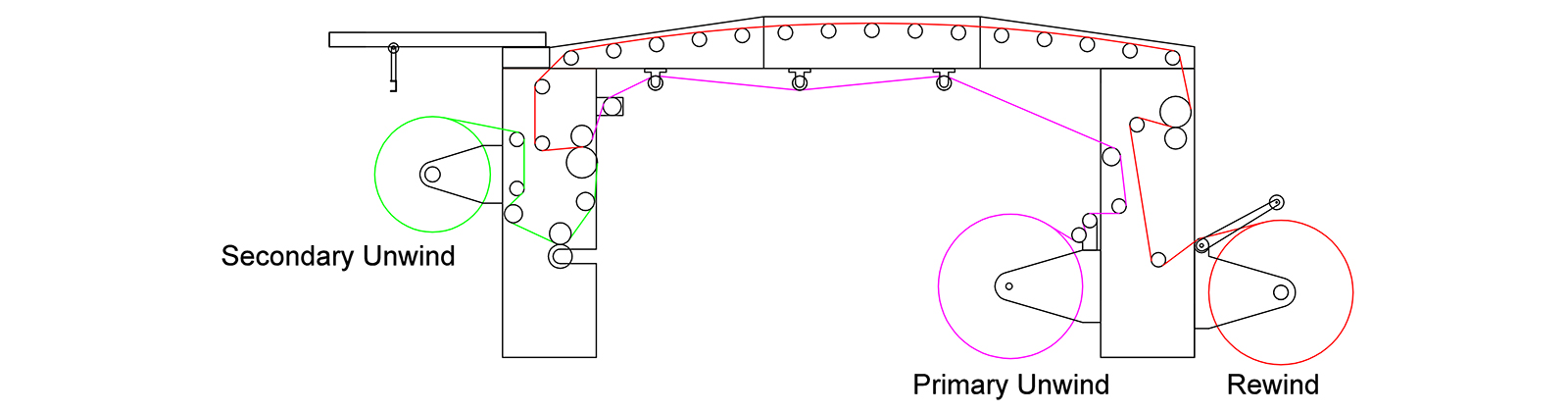

Machine Layout


Salient Features


Operator Friendly

Ergonomic Mechanical design, with control buttons placed at point of application
Standard features like length counter, dia sensor and job memory functions

Electronics

Advanced electronics control with SIEMENS drive, HMI, servo motors and PLCs for precise control

Doctor Blade

Changing doctor blade is a tool less operation
5 axis motion for precise application
Pneumatically operated doctor blade for job consistency

Chamber

Long and efficient drying chamber with recirculation, saving upto 50% energy
Optimized design to provide high nozzle velocity and CFM
Pneumatically operated chamber eases web threading and cleaning operation

Drives

Dedicated infeed and outfeed for maintaining optimum tension profile
Timing Belt and pulleys ensure noise free and precise operation

Built Quality

All components are made using automated CNC and VMC machines
Main frames made from solid 45mm thick plates

Optional Features


Auto Reel Changing Turret at unwind and rewind

Corona Treater

Adhesive transfer trolley

A.C. Motor control on both unwinds
