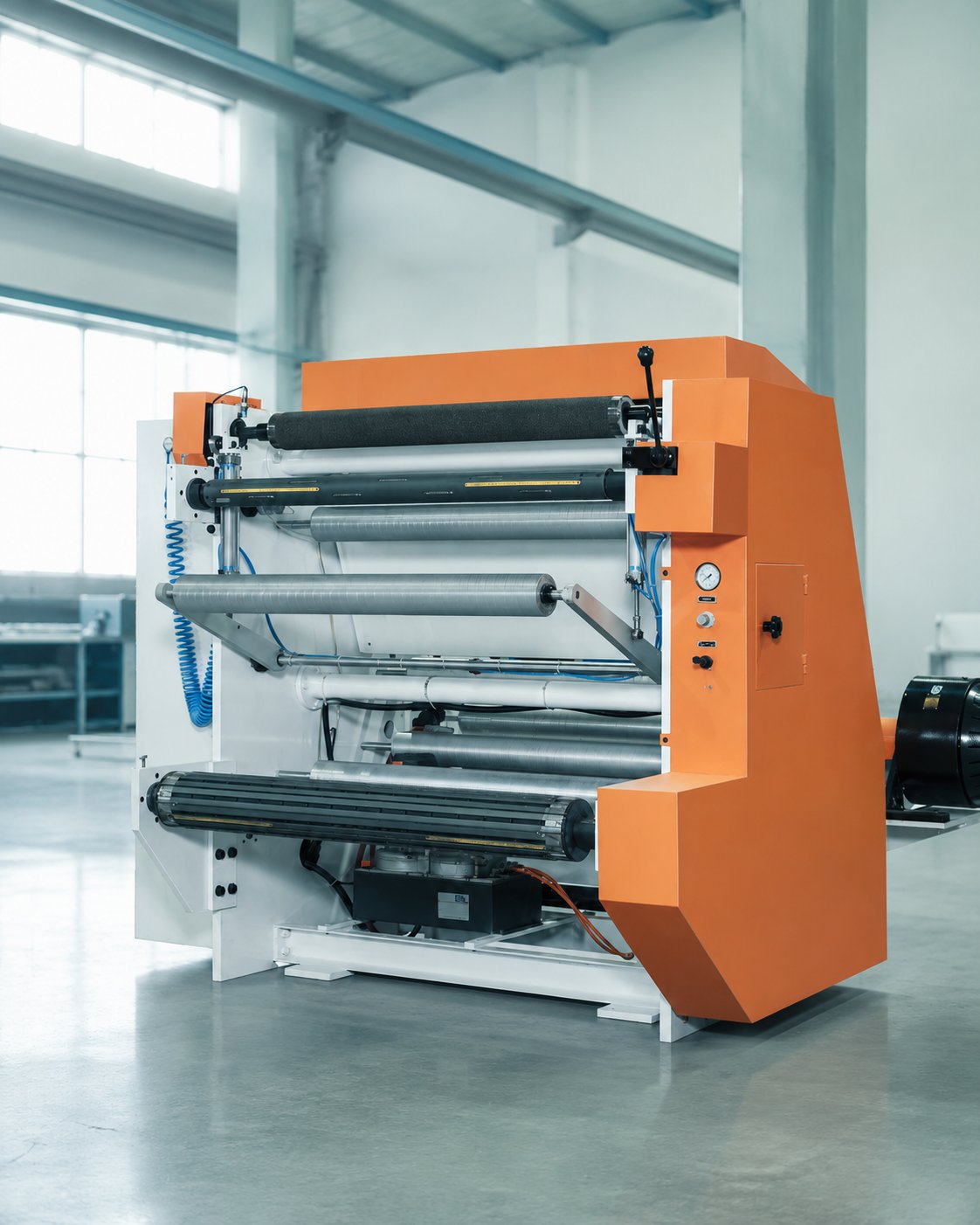

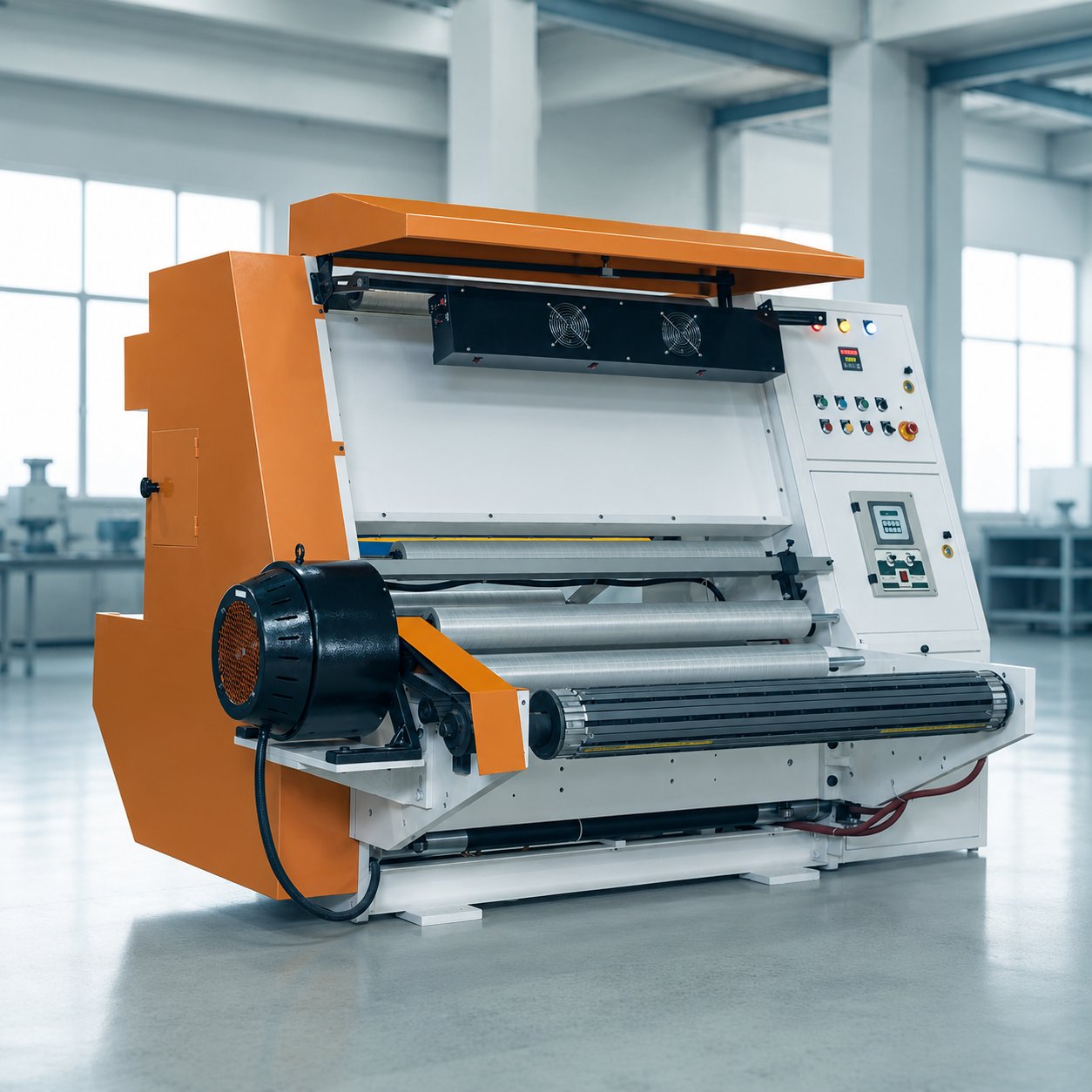

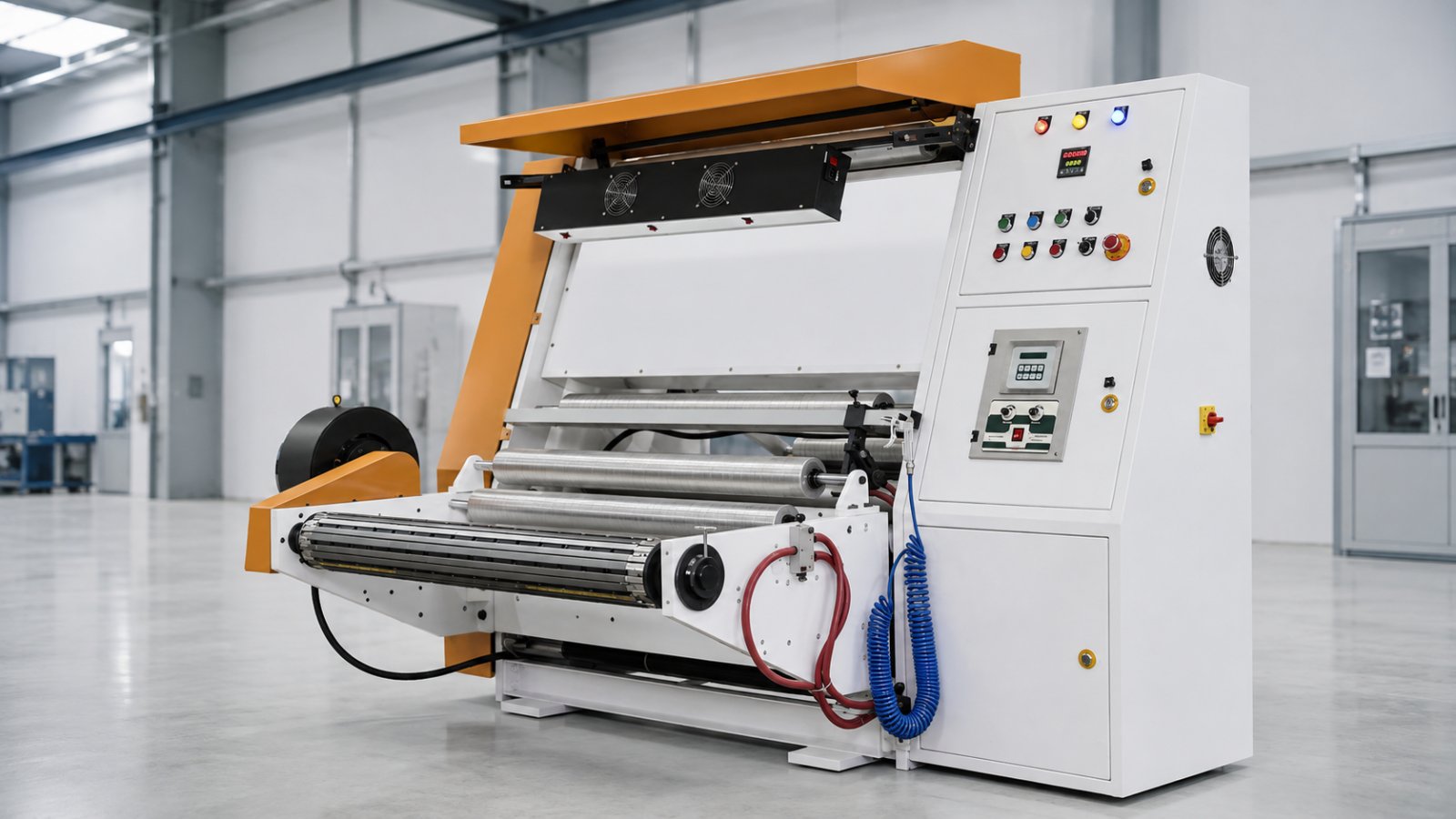

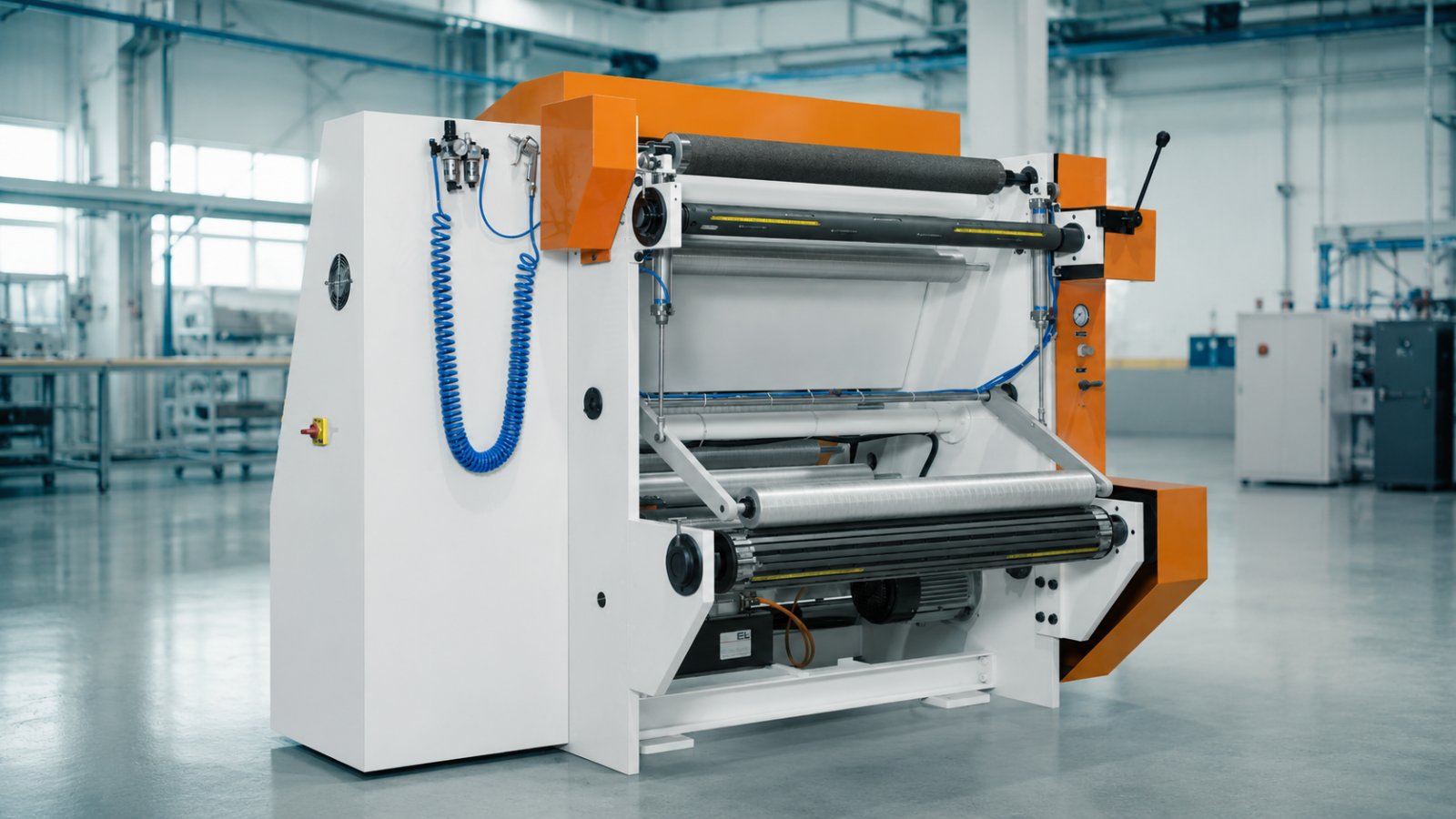

Reversible Inspection Rewinding Machine

GravoCheck

Inspection Rewinding machine to screen out the defects before taking material for downstream processes.

Schedule A Call Back
30+

Registered Sheeting and Delamination Machines Installed at

Trusted by Established Companies

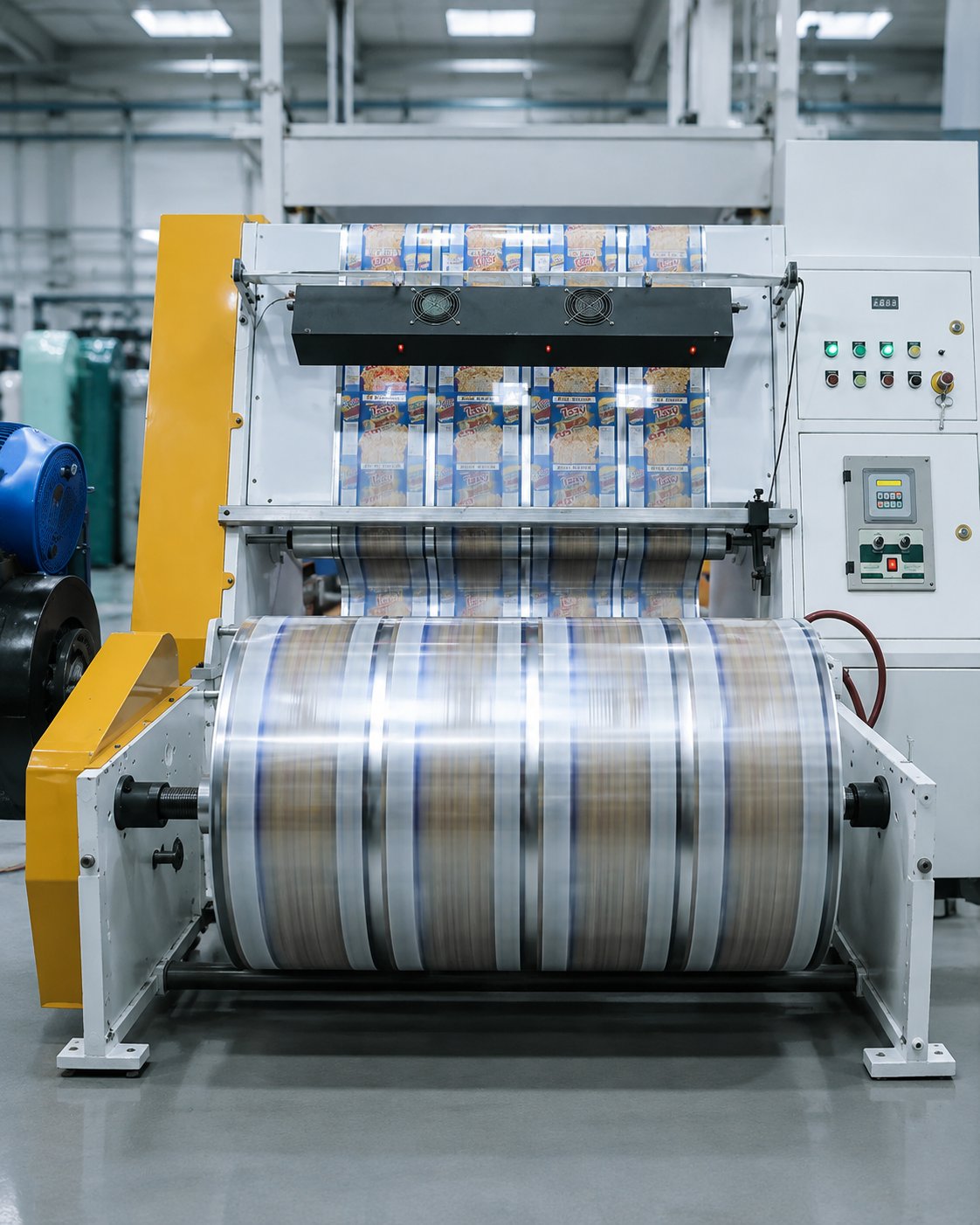

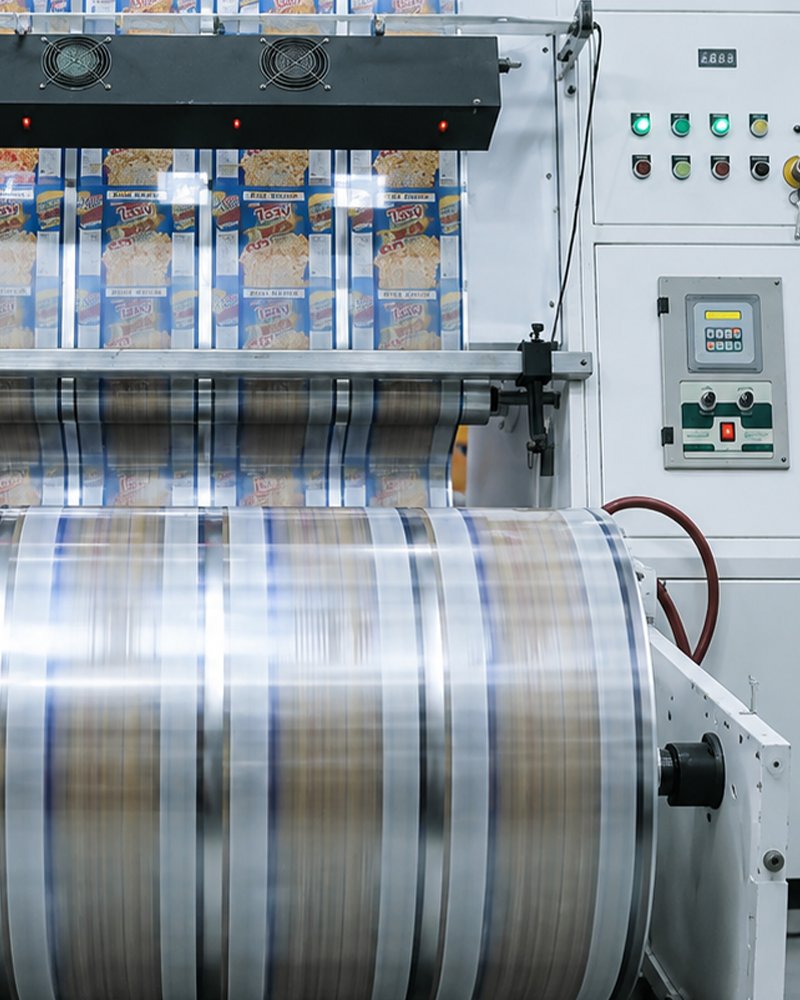

Reversible Inspection rewinder is a semi-automatic inspection machine which serves as a filter between Printing Machine and all other downstream processes. The output of the printing machine is screened for defects like mis-register, blade lines, shade variations, etc. with a means of a full width stroboscope.

When an operator identifies defective material, a button is pressed, the machine subsequently slows down, reverses and stops at the point where defect was identified. The defective material is then wound on a waste winder after cut and paste operations. Once defected material is removed, the web is again cut and pasted to the main rewinder.

The inspection machine helps in eliminating defective material and ensures that there is no further value addition to the defective material and increases the plant productivity by making material ready for lamination and slitting operations by removing other defects like telescoping and ovality.

Technical Specifications

Web Width

Up to 1300 mm

Line Speed

350 mpm

Unwind Reel Dia

1000 mm

Rewind Reel Dia

1000 mm

Waste Winder Dia

400 mm

Material

Polyester, Poly, BOPP, Paper

Area Required

3000x3000x3000

Machine Layout


Salient Features


Operator Friendly

Ergonomic Mechanical design, with control buttons placed at point of application
Standard features like length counter, dia sensor and job memory functions

Electronics

Advanced electronics control with SIEMENS drive, HMI, servo motors and PLCs for precise control

Operational

Pneumatic Lay-on roller at rewind for proper density of rewind reel

Auto tension control at unwind

Auto Web guide at Unwind

Drives

Dedicated infeed and outfeed for maintaining optimum tension profile
Timing Belt and pulleys ensure noise free and precise operation

Built Quality

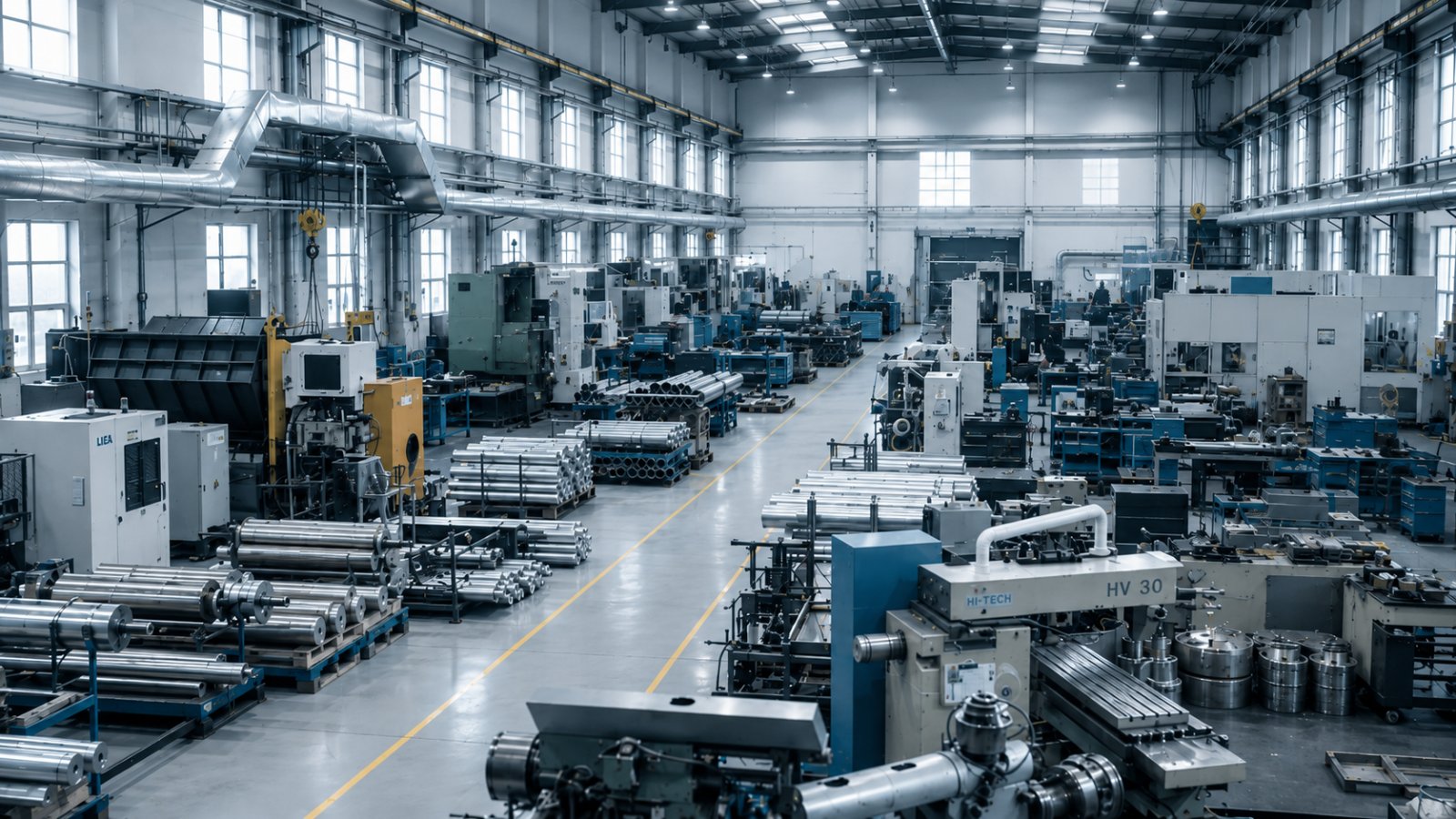

All components are made using automated CNC and VMC machines
Main frames made from solid 45mm thick plates

Optional Features


Pneumatic expandable shaft

AC vector motor at unwind

Web video

Shaftless Unwind and Rewind
